Product description:

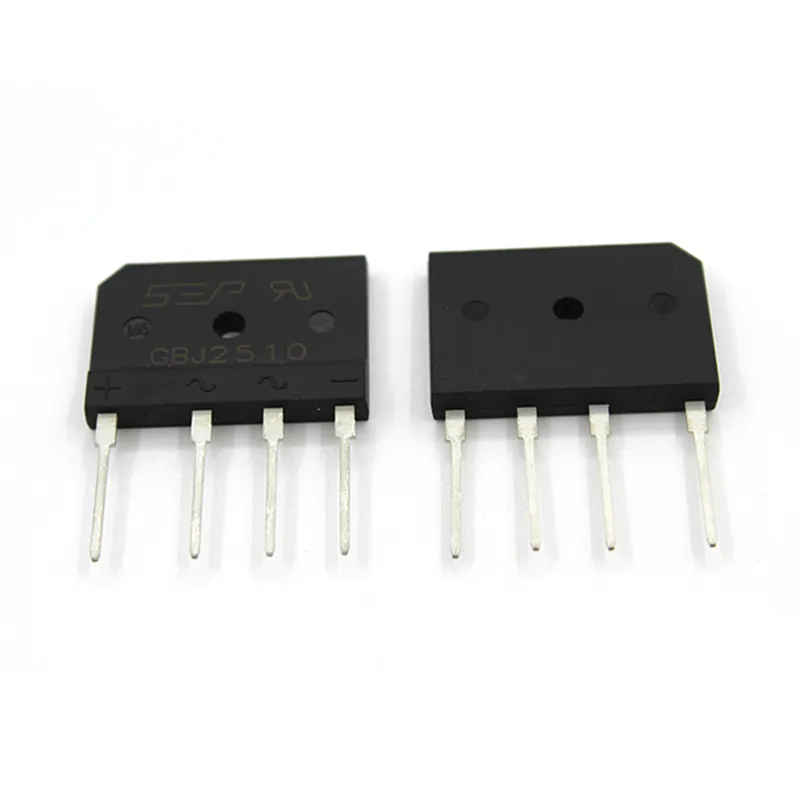

GBJ2510 Single-Phase 25.0A Glass Passivated Bridge Rectifier
The GBJ2510-F 25A glass passivated bridge rectifier features a molded plastic case material, surge overload rating up to 350A peak, lead-free finish, and is RoHS compliant.
Suitable for printed circuit board applications.
Features:
Glass Passivated Die Construction
High Case Dielectric Strength of 2500VRMS
Low Reverse Leakage Current
Surge Overload Rating to 350A Peak
Ideal for Printed Circuit Board Applications
Lead Free Finish; RoHS Compliant
This is a brand-new original product, and the price may be more expensive than the substitute product, but the quality is guaranteed; welcome to buy!
Mechanical Data:
Case: GBJ
Case Material: Molded Plastic. UL Flammability Classification 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Plated Leads, Solderable per MIL-STD-202, Method 208
Lead Free Plating (Tin Finish).
Mounting: Through Hole for #6 Screw
Mounting Torque: 5.0 in-lbs Maximum
